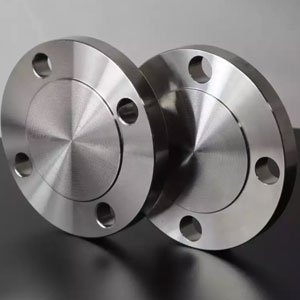

Blind Flange Suppliers

ASME B16.5 Blind Flange Dimensions, Blind Flange Series A, Blind Flange Seriers B, AWWA C207 Blind Flange, Spectacle Blind Flange ASME B16.48 Exporter

Blind Flange Suppliers in India

We as Metalfed Engineering are a reputed manufacturer, exporter, and supplier of Blind Flanges, which is popular austenitic and non-magnetic steel known for its toughness and ductility. Whether it’s the essential components of the machines you use every day or the trash can you use, chances are you’ll find these zip ties every hour. Blind Flange Series A offers easy fabrication, excellent formability, beautiful appearance, etc. Blind Flange Series B offers high ductility for formed products and hardens quickly even during machining. Spectacle Blind Flange ASME B16.48 has better corrosion resistance. It gets its steel properties from the formation of an invisible and firmly adhering chromium-rich oxide layer. ASME B16.5 Blind Flanges offers higher corrosion resistance and does not harden quickly due to its higher nickel content.
It is chromium-nickel steel that is a strong austenitic alloy and is used in a wide variety of industrial applications. AWWA C207 Blind Flange is an exceptionally versatile and resilient material that is unavoidable in modern life. It can be considered for a variety of applications where one or more of the following properties are important. Annealing of Heat should be done at 1900 Degree F – 2050 Degree F (1038 Degree C – 1121 Degree C), and then water quench.

Manufacturer of Blind Flange SORF, 30 Blind Flange Series A, ASME B16.47 Raised Face and Flat Face Blind Flange, EN 1092-1 Type 05 Blind Flange, ASTM A105 Blind Flange, API Blind Flange, AWWA C207 Class D, Class B, Class E Blind Flange in all Dimensions.

Blind Flange SORF is an extremely tough, ductile, non-magnetic, austenitic stainless steel that is a slightly higher version of carbon. When added sulfur is accumulated to increase machinability, it can frequently reduce erosion resistance to some extent. Contact us to get Blind Flange Price in India.

Largest Stockists of Grooved Blind Flange, Gi Blind Flange, JIS B2220 5k 10k 16k Blind Flange, KF Blind Flange, Blind Flange RTJ, Figure 8 Blind Flange, ANSI B16.5 Class 150#, 300#, 600#, 900#, 1500#, 2500# Blind Flanges, Blind Flange PN16 at Best Prices.

ASME B16.5 / ASME B16.47 Blind Flange Specifications
Product Name: Blind Flange | Dummy Flange
Size Chart: 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Dimensions: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Rating ANSI: Class 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN: PN6 PN10 PN16 PN25 PN40 PN64 / 6Bar 10Bar 16Bar 25Bar 40Bar
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type/Flange Face Type: RF-Raised Face, RTJ-Ring Type Joint, FF-Flat Face, LMF-Large Male-Female, LJF-Lap-Joint Face, SMF-Small Male-Female, Small Tongue, Large Tongue & Groove, Groove
Custom Flange/Special Design: As per your drawing
Standards: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, ASME/ANSI B16.5/16.36/16.47A/16.47B, GOST Flange, MSS SP44, ISO70051, BS1560-3.1, JISB2220, API7S-43, API7S-15, API605, EN1092
Flange Test: Direct-reading Spectrograph, X-ray detector, Hydrostatic testing machine, UI trasonic flaw detector, Magnetic particle detector
Flanges Equipment: Press machine, Pushing Machine, Bending machine, electric bevelling machine, Sand-blasting machine, etc
Manufacturers of: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British Standard (BS)
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ASTM A182 Blind Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Test Certificates: Third Party Inspection Report, 100% Radiography Test Report, Raw Materials Certificate, EN 10204/3.1B, etc.
Material Test Certificates (MTC): As per EN 10204 3.1 and EN 10204 3.2, TC certifying NACE MR0103, NACE MR0175
Uses & Applications: Petrochemicals and acids, Nuclear Power, Heavy oil refineries, Bitumen upgraders, Offshore, Piping Projects etc.
Export Network: Ireland, Oman, Dubai, Indonesia, Egypt, Singapore, Saudi & Arabia, Iran, Ukraine, Canada, USA, Brazil, Spain, Thailand, Korea, India, Peru, etc
Blind Flange Materials and Grades
Duplex Steel Blind Flange: ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Super Duplex Blind Flange: ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel Blind Flange: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Nickel Alloys Blind Flange: ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Alloys Blind Flange: Alloy 20, Alloy C, Alloy C276, Alloy B2
Carbon Steel Blind Flange: STM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52
Copper Alloys Blind Flange: ASTM SB 61, SB62, SB151, SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Low Temperature Steel Blind Flange: ASTM A350 LF2, LF3, LF6
High Yield Blind Flange: ASTM A694 F42, F52, F60, F65, F70
Alloy Steel Blind Flange: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Titanium Blind Flange: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Brass Blind Flange: 2604 / 3602 / H59 / H62 / etc.
Aluminium Blind Flange: 2017 / 5052 / 6063 / 6061 / 7075 etc.
Alloy 20 Blind Flange: ASME SB462 / ASTM B462, Carpenter® 20 Alloy, Alloy 20Cb-3
Nimonic Blind Flange: Nimonic 80A, Nimonic 75, Nimonic 90
254 SMO Blind Flange: ASME SA182 / ASTM A182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Other Blind Flange Material: Tin bronze, Alumunum bronze, Lead bronze
Class 150 LBS Blind Flange Dimensions
ANSI/ASME/ASA B16.5 150lb/sq.in. Flange BLIND-RF
ø D b g k Holes l Kg.
1/2″ 88,9 11,1 34,9 60,3 4 15,9 0,400
3/4″ 98,4 12,7 42,9 69,8 4 15,9 0,700
1″ 107,9 14,3 50,8 79,4 4 15,9 0,900
1 1/4″ 117,5 15,9 63,5 88,9 4 15,9 1,300
1 1/2″ 127,0 17,5 73,0 98,4 4 15,9 1,600
2″ 152,4 19,0 92,1 120,6 4 19,0 2,600
2 1/2″ 177,8 22,2 104,8 139,4 4 19,0 4,100
3″ 190,5 23,8 127,0 152,4 4 19,0 5,000
3 1/2″ 215,9 23,8 139,7 177,8 8 19,0 6,400
4″ 228,6 23,8 157,2 190,5 8 19,0 7,100
5″ 254,0 23,8 185,7 215,9 8 22,2 9,000
6″ 279,4 25,4 215,9 241,3 8 22,2 11,800
8″ 342,9 28,6 269,9 298,4 8 22,2 21,000
10″ 406,4 30,2 323,4 361,9 12 25,4 30,000
12″ 482,6 31,7 381,0 431,8 12 25,4 45,000
14″ 533,4 34,9 412,7 476,2 12 28,6 59,000
16″ 596,9 36,5 469,9 539,9 16 28,6 79,000
18″ 635,0 39,7 533,4 577,8 16 31,7 97,000
20″ 698,5 42,9 584,2 635,0 20 31,7 124,000
22″ 749,3 46,0 641,2 692,1 20 34,9 151,000
24″ 812,8 47,6 692,1 749,3 20 34,9 188,000
Class 300 LBS Blind Flange Dimensions
ANSI/ASME/ASA B16.5 300lb/sq.in. Flange BLIND-RF
ø D b g k Holes l Kg.
1/2″ 95,2 14,3 34,9 66,7 4 15,9 0,700
3/4″ 117,5 15,9 42,9 82,5 4 19,0 1,200
1″ 123,8 17,5 50,8 88,9 4 19,0 1,500
1 1/4″ 133,3 19,0 63,5 98,4 4 19,0 2,000
1 1/2″ 155,6 20,6 73,0 114,3 4 22,2 2,900
2″ 165,1 22,2 92,1 127,0 8 19,0 3,400
2 1/2″ 190,5 25,4 104,8 149,2 8 22,2 5,100
3″ 209,5 28,6 127,0 168,3 8 22,2 7,000
3 1/2″ 228,6 30,2 139,7 184,1 8 22,2 8,900
4″ 254,0 31,7 157,2 200,0 8 22,2 11,800
5″ 279,4 34,9 185,7 234,9 8 22,2 15,500
6″ 317,5 36,5 215,9 269,9 12 22,2 21,300
8″ 381,0 41,3 269,9 330,2 12 25,4 35,200
10″ 444,5 47,6 323,8 387,3 16 28,6 57,000
12″ 520,7 50,8 381,0 450,8 16 31,7 82,000
14″ 584,2 54,0 412,7 514,3 20 31,7 106,000
16″ 647,7 57,1 469,9 571,5 20 34,9 140,000
18″ 711,2 60,3 533,4 628,6 24 34,9 178,000
20″ 774,7 63,5 584,2 685,8 24 34,9 223,000
22″ 838,2 66,7 641,2 742,9 24 41,3 270,000
24″ 914,4 69,8 692,1 812,8 24 41,3 345,000
Class 600 LBS Blind Flange Dimensions
ANSI/ASME/ASA B16.5 600lb/sq.in. Flange BLIND-RF
ø D b g k Holes l Kg.
1/2″ 95,2 14,3 34,9 66,7 4 15,9 0,700
3/4″ 117,5 15,9 42,9 82,5 4 19,0 1,200
1″ 123,8 17,5 50,8 88,9 4 19,0 1,500
1 1/4″ 133,3 20,6 63,5 98,4 4 19,0 2,000
1 1/2″ 155,6 22,2 73,0 114,3 4 22,2 3,200
2″ 165,1 25,4 92,1 127,0 8 19,0 4,300
2 1/2″ 190,5 28,6 104,8 149,2 8 22,2 6,000
3″ 209,5 31,7 127,0 168,3 8 22,2 8,000
3 1/2″ 228,6 34,9 139,7 184,1 8 25,4 10,500
4″ 273,0 38,1 157,2 215,9 8 25,4 18,000
5″ 330,2 44,4 185,7 266,7 8 28,6 28,500
6″ 355,6 47,6 215,9 292,1 12 28,6 35,500
8″ 419,1 55,6 269,9 349,2 12 31,7 58,000
10″ 508,0 63,5 323,8 431,8 16 34,9 98,000
12″ 558,8 66,7 381,0 488,9 20 34,9 125,000
14″ 603,2 69,8 412,7 527,0 20 38,1 151,000
16″ 685,8 76,2 469,9 603,2 20 41,3 215,000
18″ 742,9 82,5 533,4 654,0 20 44,4 287,000
20″ 812,8 88,9 584,2 723,9 24 44,4 366,000
22″ 869,9 95,2 641,2 777,9 24 47,6 437,000
24″ 939,8 101,6 692,1 838,2 24 50,8 532,000
Blind Flange Weight Chart
Flange Weights by Pressure Class and Size
Pipe Size 150 # 300 # 600 # 900 # 1500 # 2500 #
WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD
1/2″ 2 1 1 2 1 1 2 2 2 SEE 1500 # WEIGHTS 5 4 4 7 7 7
3/4″ 2 2 2 3 3 3 4 3 3 SEE 1500 # WEIGHTS 6 5 6 8 8 8
1″ 3 2 2 4 3 3 4 4 4 SEE 1500 # WEIGHTS 9 8 8 12 11 11
1 1/2″ 4 3 3 7 6 6 8 7 8 SEE 1500 # WEIGHTS 13 12 13 25 22 23
2″ 6 5 5 9 7 8 12 9 10 SEE 1500 # WEIGHTS 25 25 25 42 37 39
2 1/2″ 8 7 7 12 10 12 18 13 15 SEE 1500 # WEIGHTS 36 36 35 52 55 56
3″ 10 8 9 15 13 16 23 16 20 31 26 29 48 48 48 94 83 86
4″ 15 13 17 25 22 27 42 37 41 53 53 54 73 73 73 145 125 130
5″ 19 15 20 32 28 35 68 63 68 86 83 87 130 130 140 245 210 225
6″ 24 19 26 42 39 50 81 80 86 110 110 115 165 165 160 380 325 345
8″ 39 30 45 67 58 81 120 115 140 175 170 200 275 260 300 580 485 530
10″ 52 43 70 91 81 124 190 170 230 260 245 290 455 435 510 1075 930 1025
12″ 80 64 110 140 115 185 225 200 295 325 325 415 690 580 690 1525 1100 1300
14″ 110 90 140 180 165 250 280 230 355 400 400 520 940 NA 975 NA NA NA
16″ 140 98 180 250 190 295 390 330 495 495 425 600 1250 NA 1300 NA NA NA
18″ 150 130 220 320 250 395 475 400 630 680 600 850 1625 NA 1750 NA NA NA
20″ 180 165 285 400 315 505 590 510 810 830 730 1075 2050 NA 2225 NA NA NA
22″ 225 185 355 465 370 640 720 590 1000 NA NA NA NA NA NA NA NA NA
24″ 260 220 430 580 475 790 830 730 1250 1500 1400 2025 3325 NA 3625 NA NA NA
Conversion Data
• 1 inch = 25.44 mm • 1 mm = 0.03937 inches • 1 lb/ft^2 = 47.88 Pa • 1 psi = 6.8948 Pa • x°F = (5/9)(x-32)°C
• 1 pound = 0.45359 Kg • 1 Kg = 2.20462 pounds • 1 Pa = 0.020885 lb/ft^2 • 1 Pa = 0.00014504 psi • x°C = (9/5)x + 32°F
Blind Flange PN16 Dimensions
DIN 2527 PN16 BLIND FLANGE
Rated
Diameter
Flange Screws Weight
(7,85 Kg/dm3)
D b k Number Thread d2 Shape B
Kg
15 95 14 65 4 M 12 14 0,72
20 105 16 75 1,01
25 115 16 85 1,23
32 140 16 100 M 16 18 1,8
40 150 16 110 2,09
50 165 18 125 2,88
65 185 18 145 3,66
80 200 20 160 8 4,77
100 220 20 180 5,65
125 250 22 210 8,42
150 285 22 240 M 20 22 10,4
200 340 24 295 12 16,1
250 405 26 355 M 24 26 24,9
300 460 28 410 35,1
350 520 30 470 16 47,8
400 580 32 525 M 27 30 63,5
500 715 36 650 20 M 30 33 102
ASME B16.5 Blind Flanges Types
  • blind flange en 1092-1
  • ASME B16.5 blind flanges
  • blind Flanges SORF
  • api blind flanges
  • aluminium blind flanges
  • blind flanges class 300
  • astm a105 blind flange
  • ansi 150 blind flange
  • end blind flange
  • blind flange series a
  • spectacle blind flange asme b16.48
  • class 150 blind flange
  • blind flange series b
  • blind flange asme b16.5 class 300
  • blind flange blrf
  • blind flange pn 16
  • blind flange pn 40
  • ss blind flange
  • 150# blind flange
  • en 1092 blind flange
  • 150 LB blind flange
  • 300 LB blind flange
  • spectacle blind flange
  • blind flange pn 10
  • blind flange sch 80
  • stainless steel blind flange
  • blind flamge b 16.47
  • blind flange pn 160
  • carbon steel blind flange
  • class 600 blind flange
  • class 900 blind flange
  • blind flange pn6
  • blind flange pn 250
  • blind flange pn 64
  • jis blind flange
  • blind flange a105
Blind Flange Applications & Industries

We are well-known prestigious Manufacturers, Exporters, and Suppliers of high quality ASME B16.5 Blind Flange. We supply ASME B16.47 Blind Flange to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications. Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.

Ready Stock of Blind Flange Export to

AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe

EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City

AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela

Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu

CONTACT

Please send us the complete details of Blind Flange Series A / B requirement. We offer ANSI B16.5 Blind Flange, and ASME B16.48 Spectacle Blind Flanges which are accurately designed to provide satisfaction to our customers. We are assisted by a team of skilled professionals, who support us in all our career activities right from a realization of raw material to testing and final dispatch of these  Class 150#, 300#, 400#, 600#, 900#, 1500#, 2500#, Blind Flange at our valuable customers end. Buy Blind Flangeat a cheap price from us.
