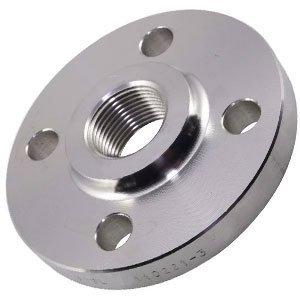

Threaded Flange Suppliers

Exporter of ASME B16.5 Threaded Flange, Threaded Blind Flange, Threaded SS Flange Dimensions

Threaded Flange Suppliers in India

We as Metalfed Engineering are a well-known manufacturer, exporter, and supplier of Threaded Flange, which has less carbon to minimize carbide precipitation and is used in high-temperature applications. ASME B16.5 Threaded Blind Flange is commonly used for processing equipment in the mining, chemical, cryogenic, food, dairy, and pharmaceutical industries. The chromium content in such Stainless Steel Threaded Flanges allows the formation of a molecular layer of chromium oxide on the surface of the steel. It provides useful corrosion resistance in a wide range of moderately oxidizing to moderately reducing environments. Carbon Steel Threaded Flanges should not be exposed to temperatures between 800 degrees F / 1650 degrees F (425 degrees C / 900 degrees C) nor should it be allowed to cool slowly above this range to prevent intergranular corrosion from occurring.
Threaded Lap Joint Flange can be cold worked to high tensile strengths with somewhat lower ductility. Table D Threaded Flanges is also used in the food and beverage industry, pressure holding applications, sanitary or cryogenic applications, etc. Forging ideally occurs at these temperatures: 1149°C – 1260°C (2100°F – 2300°F). Table E Threaded Flanges is used for applications requiring a low work hardening rate in heavy cold forming operations such as deep drawing. Must be annealed at 1850 degrees F/2050 degrees F (1010 degrees C/1120 degrees C) and water quenched.

Manufacturer of ANSI B16.5 Threaded Flange, EN 1092-1 Threaded Flange, Table D & Table E Threaded Flange, PN6 Threaded Flange FF RF RTJ, Gi Threaded Flange, Threaded Lap Joint Flange, JIS Threaded Flange in all Dimensions.

Many applications have switched to these Copper Nickel Threaded Flanges due to advances in smelting technology, availability and cost. Although all of these other metals have been added, it is the chromium content that gives it its power. Buy ANSI B16.5 Threaded Flange at the best price.

Largest Stockists of Large Male Threaded Flange, Class 150 Threaded Flange, NPT Threaded Flange, DN40 Threaded Orifice Flange, DIN 2566 Threaded Slip On Flange, ANSI B16.5 300#, 600#, 900#, 1500#, 2500# Threaded Flanges, Threaded Flange PN16 PN10 at Best Prices.

ASME B16.5 / ASME B16.47 Threaded Flange Specifications
Product Name: Threaded Flange
Size Chart: 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Dimensions: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Rating ANSI: Class 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS
Pressure Calculation in DIN: PN6 PN10 PN16 PN25 PN40 PN64 / 6Bar 10Bar 16Bar 25Bar 40Bar
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type/Flange Face Type: RF-Raised Face, RTJ-Ring Type Joint, FF-Flat Face, LMF-Large Male-Female, LJF-Lap-Joint Face, SMF-Small Male-Female, Small Tongue, Large Tongue & Groove, Groove
Custom Flange/Special Design: As per your drawing
Standards: ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, ASME/ANSI B16.5/16.36/16.47A/16.47B, GOST Flange, MSS SP44, ISO70051, BS1560-3.1, JISB2220, API7S-43, API7S-15, API605, EN1092
Flange Test: Direct-reading Spectrograph, X-ray detector, Hydrostatic testing machine, UI trasonic flaw detector, Magnetic particle detector
Flanges Equipment: Press machine, Pushing Machine, Bending machine, electric bevelling machine, Sand-blasting machine, etc
Manufacturers of: DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638
B.S: BS4504 , BS3293, BS1560, BS10
AS 2129: Table D; Table E; Table H
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
American standard (ANSI)
German (DIN)
British Standard (BS)
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
ASTM A182 Threaded Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Test Certificates: Third Party Inspection Report, 100% Radiography Test Report, Raw Materials Certificate, EN 10204/3.1B, etc.
Material Test Certificates (MTC): As per EN 10204 3.1 and EN 10204 3.2, TC certifying NACE MR0103, NACE MR0175
Uses & Applications: Petrochemicals and acids, Nuclear Power, Heavy oil refineries, Bitumen upgraders, Offshore, Piping Projects etc.
Export Network: Ireland, Oman, Dubai, Indonesia, Egypt, Singapore, Saudi & Arabia, Iran, Ukraine, Canada, USA, Brazil, Spain, Thailand, Korea, India, Peru, etc
Threaded Flange Materials and Grades
Duplex Steel Threaded Flange: ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Super Duplex Threaded Flange: ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61
Stainless Steel Threaded Flange: ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Nickel Alloys Threaded Flange: ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Alloys Threaded Flange: Alloy 20, Alloy C, Alloy C276, Alloy B2
Carbon Steel Threaded Flange: STM / ASME A/SA 105 ASTM / ASME A 350, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52
Copper Alloys Threaded Flange: ASTM SB 61, SB62, SB151, SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Low Temperature Steel Threaded Flange: ASTM A350 LF2, LF3, LF6
High Yield Threaded Flange: ASTM A694 F42, F52, F60, F65, F70
Alloy Steel Threaded Flange: ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Titanium Threaded Flange: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Brass Threaded Flange: 2604 / 3602 / H59 / H62 / etc.
Aluminium Threaded Flange: 2017 / 5052 / 6063 / 6061 / 7075 etc.
Alloy 20 Threaded Flange: ASME SB462 / ASTM B462, Carpenter® 20 Alloy, Alloy 20Cb-3
Nimonic Threaded Flange: Nimonic 80A, Nimonic 75, Nimonic 90
254 SMO Threaded Flange: ASME SA182 / ASTM A182, SMO 254/6Mo, UNS S31254, DIN 1.4547
Other Threaded Flange Material: Tin bronze, Alumunum bronze, Lead bronze
Class 150 Threaded Flange Dimensions
DRILLING
NOMINAL BORE DIA.
(D)
THICK.
(E)
DIA.
(F)
DIA.
(B)
HEIGHT1
(H)
NBR HOLES DIA.
(C)
1/2″ 90 9.6 35.05 30 14 4 15.87 60.3
3/4″ 100 11.2 42.92 38 14 4 15.87 69.9
1″ 110 12.7 50.80 49 16 4 15.87 79.4
1 1/4″ 115 14.3 63.50 59 19 4 15.87 88.9
1 1/2″ 125 15.9 73.15 65 21 4 15.87 98.4
2″ 150 17.5 91.94 78 24 4 19.05 120.7
2 1/2″ 180 20.7 104.65 90 27 4 19.05 139.7
3″ 190 22.3 127.00 108 29 4 19.05 152.4
3 1/2″ 215 22.3 139.70 122 30 8 19.05 177.8
4″ 230 22.3 157.22 135 32 8 19.05 190.5
5″ 255 22.3 185.67 164 35 8 22.22 215.9
6″ 280 23.9 215.90 192 38 8 22.22 241.3
8″ 345 27.0 269.75 246 43 8 22.22 298.5
10″ 405 28.6 323.85 305 48 12 25.40 362.0
12″ 485 30.2 381.00 365 54 12 25.40 431.8
14″ 535 33.4 412.75 400 56 12 28.57 476.3
16″ 595 35.0 469.90 457 62 16 28.57 539.8
18″ 635 38.1 533.40 505 67 16 31.75 577.9
20″ 700 41.3 584.20 559 71 20 31.75 635.0
24″ 815 46.1 692.15 663 81 20 34.92 749.3

NOTES: 1,6mm raised face not included in the E & H dimensions

Class 300 Threaded Flange Dimensions
DRILLING
NOMINAL BORE DIA.
(D)
THICK.
(E)
DIA.
(F)
DIA.
(B)
DIA.
(A)
HEIGHT1
(H)
NBR HOLES DIA.
(C)
1/2″ 95 12.7 35.05 38 23.6 21 4 15.87 66.7
3/4″ 115 14.3 42.92 48 29.0 24 4 19.05 82.6
1″ 125 15.9 50.80 54 35.8 25 4 19.05 88.9
1 1/4″ 135 17.5 63.50 64 44.4 25 4 19.05 98.4
1 1/2″ 155 19.1 73.15 70 50.3 29 8 22.22 114.3
2″ 165 20.7 91.94 84 63.5 32 8 19.05 127.0
2 1/2″ 190 23.9 104.65 100 76.2 37 8 22.22 149.2
3″ 210 27.0 127.00 117 92.2 41 8 22.22 168.3
3 1/2″ 230 28.6 139.70 133 104.9 43 8 22.22 184.2
4″ 255 30.2 157.22 146 117.6 46 8 22.22 200.0
5″ 280 33.4 185.67 178 144.4 49 8 22.22 235.0
6″ 320 35.0 215.90 206 171.4 51 12 22.22 269.9
8″ 380 39.7 269.75 260 222.2 60 12 25.40 330.2
10″ 445 46.1 323.85 321 276.2 65 16 28.57 387.4
12″ 520 49.3 381.00 375 328.6 71 16 31.75 450.8
14″ 585 52.4 412.75 425 360.4 75 20 31.75 514.4
16″ 650 55.6 469.90 483 411.2 81 20 34.92 571.5
18″ 710 58.8 533.40 533 462.0 87 24 34.92 628.6
20″ 775 62.0 584.20 587 512.8 94 24 34.92 685.8
24″ 915 68.3 692.15 702 614.4 105 24 41.27 812.8

IMP. NOTES: 1,6mm raised face not included in the E & H dimensions

Class 600 Threaded Flange Dimensions
DRILLING
NOMINAL BORE DIA.
(D)
THICK.
(E)
DIA.
(F)
DIA.
(B)
DIA.
(A)
HEIGHT1
(H)
NBR HOLES DIA.
(C)
1/2″ 95 14.3 35.05 38 23.6 22 4 15.87 66.7
3/4″ 115 15.9 42.92 48 29.0 25 4 19.05 82.6
1″ 125 17.5 50.80 54 35.8 27 4 19.05 88.9
1 1/4″ 135 20.7 63.50 64 44.4 29 4 19.05 98.4
1 1/2″ 155 22.3 73.15 70 50.6 32 4 22.22 114.3
2″ 165 25.4 91.94 84 63.5 37 8 19.05 127.0
2 1/2″ 190 28.6 104.65 100 76.2 41 8 22.22 149.2
3″ 210 31.8 127.00 117 92.2 46 8 22.22 168.3
3 1/2″ 230 35.0 139.70 133 104.9 49 8 25.40 184.2
4″ 275 38.1 157.22 152 117.6 54 8 25.40 215.9
5″ 330 44.5 185.67 189 144.4 60 8 28.57 266.7
6″ 355 47.7 215.90 222 171.4 67 12 31.75 292.1
8″ 420 55.6 269.75 273 222.2 76 12 31.75 349.2
10″ 510 63.5 323.85 343 276.2 86 16 34.92 431.8
12″ 560 66.7 381.00 400 328.6 92 20 34.92 489.0
14″ 605 69.9 412.75 432 360.4 94 20 38.10 527.0
16″ 685 76.2 469.90 495 411.2 106 20 41.27 603.2
18″ 745 82.6 533.40 546 462.0 117 20 44.45 654.0
20″ 815 88.9 584.20 610 512.8 127 24 44.45 723.9
24″ 940 101.6 692.15 718 614.4 140 24 47.62 838.2

IMP. NOTES: 1,6mm raised face not included in the E & H dimensions

Threaded Flange Weight Chart
Pipe Normal Diam. O.D. Flange  Thk. Of Flange Min  Diam.
of
Hub
Diameter of Raised Face  Length Hub.Y Thread Length Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG LB
inch dn O C X G Y T BC BH BN BD
1/2″ 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2″ 0.4 0.9
3/4″ 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2″ 0.7 1.5
1″ 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2″ 0.8 1.8
1-1/4″ 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2″ 1.2 2.6
1-1/2″ 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2″ 1.5 3.3
2″ 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8″ 2.3 5.1
2-1/2″ 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8″ 3.7 8.1
3″ 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8″ 4.1 9
3-1/2″ 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8″ 5.1 11.2
4″ 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8″ 5.9 13
5″ 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4″ 7 15.4
6″ 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4″ 8.4 18.5
8″ 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4″ 13 28.6
10″ 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8″ 18 39.5
12″ 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8″ 29 64
14″ 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1″ 39 86
16″ 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1″ 47 103
18″ 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8″ 57 126
20″ 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8″ 76 167
24″ 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4″ 97 214
Threaded Flange Pressure Ratings

Maximum allowable non-shock pressure (psig) and temperature ratings for threaded flange ansi b16.5 and flanged fittings according the American National Standard ANSI B16.5 – 1988.

Maximum Allowable non-shock Pressure (psig)
Temperature
(oF)
Pressure Class (lb)
150 300 400 600 900 1500 2500
Hydrostatic Test Pressure (psig)
450 1125 1500 2225 3350 5575 9275
-20 to 100 290 750 1000 1500 2250 3750 6250
200 260 750 1000 1500 2250 3750 6250
300 230 730 970 1455 2185 3640 6070
400 200 705 940 1405 2110 3520 5865
500 170 665 885 1330 1995 3325 5540
600 140 605 805 1210 1815 3025 5040
650 125 590 785 1175 1765 2940 4905
700 110 555 740 1110 1665 2775 4630
750 95 505 675 1015 1520 2535 4230
800 80 410 550 825 1235 2055 3430
850 65 320 425 640 955 1595 2655
900 50 225 295 445 670 1115 1855
950 35 135 185 275 410 685 1145
1000 20 85 115 170 255 430 715
Types of ANSI B16.5 Threaded Flange
  • 2 inch threaded Flanges
  • ASME B16.5 Screwed Flanges
  • threaded reducing Flanges
  • npt threaded Flanges
  • copper threaded Flanges
  • 3 threaded Flanges
  • threaded flange din 2566
  • stainless steel threaded flange
  • weld on threaded flange
  • reducing threaded flange
  • npt threaded flange
  • threaded weld neck flange
  • A105 threaded flange
  • brass threaded flange
  • bsp threaded flange
  • class 150 threaded flange
  • threaded flange adapter
  • threaded flange plate
  • threaded flange dn50
  • threaded flange dn40
  • threaded flange din
  • threaded flange dn25
  • ansi 150 threaded flange
  • Aluminium Threaded Flange
  • 150 LB threaded flange
  • 300 LB threaded Flange
  • threaded blind flange
  • carbon steel threaded flange
  • class 300 threaded flange
  • class 125 threaded flange
  • table e threaded flange
  • table d threaded flange
  • ASME B16.5 Threaded Flanges
  • threaded flange male
  • threaded flange dn80
  • threaded flange pipe
  • 4 threaded flange
  • 3/4 threaded flange
  • threaded end flange
  • jis threaded flange
Threaded Flange Applications & Industries

We are well-known prestigious Manufacturers, Exporters, and Suppliers of high quality Table E Threaded Flange. We supply ASME B16.47 Threaded Flange to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications. Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Report.

Ready Stock of Threaded Flange Export to

AfricaAlgeria, Angola, Benin, Botswana, Burkina Faso, Burundi, Cabo Verde, Cameroon, Central African Republic (CAR), Chad, Comoros, The Democratic Republic of the Congo, Republic of the Congo, Cote d’Ivoire, Djibouti, Egypt, Equatorial Guinea, Eritrea, Ethiopia, Gabon, Gambia, Ghana, Guinea, Guinea-Bissau, Kenya, Lesotho, Liberia, Libya, Madagascar, Malawi, Mali, Mauritania, Mauritius, Morocco, Mozambique, Namibia, Niger, Nigeria, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Somalia, South Africa, South Sudan, Sudan, Swaziland, Tanzania, Togo, Tunisia, Uganda, Zambia, Zimbabwe

EuropeAlbania, Andorra, Armenia, Austria, Azerbaijan, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Turkey, Ukraine, United Kingdom, Vatican City

AmericaAntigua and Barbuda, Bahamas, Barbados, Belize, Canada, Costa Rica, Cuba, Dominica, Dominican Republic, El Salvador, Grenada, Guatemala, Haiti, Honduras, Jamaica, Mexico, Nicaragua, Panama, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad and Tobago, United States of America, Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Peru, Suriname, Uruguay, Venezuela

Asia/OceaniaAfghanistan, Armenia, Azerbaijan, Bahrain, Bangladesh, Bhutan, Brunei, Cambodia, China, Cyprus, Georgia, India, Indonesia, Iran, Iraq, Israel, Japan, Jordan, Laos, Lebanon, Malaysia, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Oman, Pakistan, Palestine, Philippines, Qatar, Russia, Saudi Arabia, Singapore, South Korea, Sri Lanka, Syria, Taiwan, Tajikistan, Thailand, Timor-Leste, Turkey, Turkmenistan, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen, Australia, Fiji, Kiribati, Marshall Islands, Micronesia, Nauru, New Zealand, Palau, Papua New Guinea, Samoa, Solomon Islands, Tonga, Tuvalu, Vanuatu
