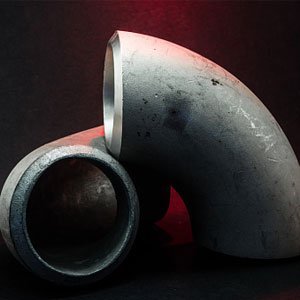

90 Degree Elbow Supplier

Manufacturer of ASME B16.9 Elbow, Elbow 90 Degree, 90 Degree Long Radius Elbow

90 Degree Elbow Suppliers in India

Metalfed Engineering is well-known organization worldwide. We have reputed name as in supplying, exporting and manufacturing units of  90 Degree Elbow. Our clients highly appreciate our ASME B16.9 Elbows because of their durability and design . We supply this Elbow 90 Degree in various sizes, shapes, and dimensions.

We manufacture these Buttweld 90 Degree Elbow in long radius and short radius version. The centre to face distance for a long radius is nominal pipe size, while the centre to face distance for 90 Degree SR Elbow even is to nominal pipe size.The radius of both the 90 degree and 90 Degree long and short elbow is the same however, the centre to face dimension is not equivalent due to the smaller degree of bend. 90 Degree Long Radius Elbow in accordance with the national and international quality standards and offerat best prices to our valuable clients.

We are exporting ANSI B16.9 90 Degree Elbow which manufactured by using the superior quality of raw materials after well tested and quality assured. We are developing these 90 Deg elbows under the supervision of professionals that are having excellent knowledge and skills of product development.

ASME B16.9 Buttweld Elbows Catalogue

Get Elbow 90 ASME B16.9, 90 Degree LR Elbow, ANSI B16.9 Elbow Dimensions, Elbow 90 Degree SCH80, Buttweld 90 Degree Long Radius Elbow Price in India

The function of a 90 Degree Long Radius Elbow is same as 90 degree long and short elbow, but the measurement and dimensions is different to that of a 90 degree long and the short elbow. ASME B16.9 pipe elbows are of superior quality and offer excellent corrosion resistance, high weldability, good tensile strength, stress corrosion resistance, high ductility and stable in elevated temperature.

Before the packaging and delivery of this Buttweld 90 Degree elbow, We conduct so many destructive and non-destructive quality check tests. During the testing process, various qualitative parameters of ANSI B16.9 Elbows are verified by our quality controllers. We have huge stock of Elbow 90 Degree for emergency requirements. Contact us to get Buttweld Pipe Elbow 90 Degree Price List in India.

Globally Butt weld Elbow 90 Degree supplier, Schedule 10 90 Degree Elbow, Long Radius 90° Pipe Elbow, ASME B16.28 90 Degree Elbow, Seamless Pipe Elbow, 90 Degree Seamless Elbows, 90 Deg. Welded Pipe Elbow Manufacturer in Mumbai India.

Buttweld 90 Degree Elbow Specifications
Dimension

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43.

Size

1/2″NB TO 48″NB IN.

Form

½”90° Long Radius Elbow, Butt weld 90° Short Radius Elbow.

Thickness

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type

Welded / ERW / Welded / Fabricated

Elbow 90 Degree Dimensions

ASME B16.9 Elbow Radius, 90 Degree Elbow Sizes
NPS O.D.
D
90 degrees
Long Radius
Center-to-End
A
90 degrees
3D
Center-to-End
A
1/2 21.3 38
3/4 26.7 38 57
1 33.4 38 76
42.2 48 95
48.3 57 114
2 60.3 76 152
73 95 190
3 88.9 114 229
101.6 133 267
4 114.3 152 305
5 141.3 190 381
6 168.3 229 457
8 219.1 305 610
10 273 381 762
12 323.8 457 914
14 355.6 533 1067
16 406.4 610 1219
18 457 686 1372
20 508 762 1524
22 559 838 1676
24 610 914 1829
26 660 991 1981
28 711 1067 2134
30 762 1143 2286
32 813 1219 2438
34 864 1295 2591
36 914 1372 2743
38 965 1448 2896
40 1016 1524 3048
42 1067 1600 3200
44 1118 1676 3353
46 1168 1753 3505
48 1219 1829 3658
Elbow 90 Degree Long Radius Dimensions
90 DEG LONG RADIUS ELBOWS (R = 1,5 ND) ANSI B 16.9 dimensions
inches ND mm Center to center Radius Center to end Back to face
D O A B K
1/2 15 21,34 76,20 38,10 15,87 47,62
3/4 20 26,67 57,15 28,57 11,11 42,86
1    25 33,40 76,20 38,10 22,22 55,56
1 1/4 32 42,16 95,25 47,60 25,40 69,85
1 1/2 40 48,26 114,30 57,15 28,57 82,55
2    50 60,32 152,40 76,20 34,92 106,40
2 1/2 65 73,02 190,50 95,25 44,45 131,80
3    80 88,90 228,60 114,30 50,80 158,75
3 1/2 90 101,60 266,70 133,35 57,15 184,15
4    100 114,30 304,80 152,40 63,50 209,55
5    125 141,30 381,00 190,50 79,38 261,90
6    150 168,27 457,20 228,60 95,25 312,70
8    200 219,07 609,60 304,80 127,00 414,30
10    250 273,05 762,00 381,00 158,75 517,50
12    300 323,85 914,40 457,20 190,50 619,10
14    350 355,60 1066,80 533,40 222,25 711,20
16    400 406,40 1219,20 609,60 254,00 812,80
18    450 457,20 1371,60 685,80 285,74 914,40
20    500 508,00 1524,00 762,00 317,50 1016,00
22    550 558,80 1676,40 838,20 342,90 1117,60
24    600 609,60 1828,80 914,40 381,00 1219,20
28    700 711,20 2133,60 1066,80 441,90 1422,40
Dimensions of 90° Short Radius Elbow
NPS O.D.
D
Center-to-End
A
1 33.4 25
42.2 32
48.3 38
2 60.3 51
73 64
3 88.9 76
101.6 89
4 114.3 102
5 141.3 127
6 168.3 152
8 219.1 203
10 273 254
12 323.8 305
14 355.6 356
16 406.4 406
18 457 457
20 508 508
22 559 559
24 610 610
90 Degree Elbow Weight Chart

Elbow 90 Degree ASME B16.9 Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by client.

WEIGHTS OF 90 DEGREE ELBOWFITTINGS
NPS
inches
ELBOWS
LR 90°
ELBOWS
SR 90°
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.05 0.06 0.08 0.10 0.03 0.04 0.05 0.07
3/4 0.06 0.07 0.09 0.11 0.04 0.05 0.06 0.07
1 0.09 0.15 0.18 0.20 0.06 0.10 0.12 0.13
1 1/4 0.13 0.20 0.25 0.35 0.09 0.13 0.17 0.12
1 1/2 0.18 0.30 0.40 0.50 0.12 0.20 0.27 0.33
2 0.30 0.50 0.70 0.90 0.20 0.33 0.47 0.60
2 1/2 0.60 0.85 1.35 1.80 0.40 0.60 0.90 1.20
3 0.90 1.30 2.00 2.90 0.60 0.90 1.35 1.90
4 1.40 2.00 4.00 5.90 0.90 1.35 2.65 3.90
5 2.90 3.60 6.50 9.70 1.95 2.40 4.35 6.50
6 4.00 5.00 10.5 16.0 2.70 3.35 7.00 10.5
8 7.40 10.0 21.5 33.5 4.90 6.70 14.5 22.5
10 13.6 16.8 38.5 52.5 9.10 11.2 25.6 35.0
12 23.4 27.0 59.0 79.0 15.6 18.0 39.5 53.0
14 29.0 35.0 70.0 94.0 19.3 23.5 47.0 63.0
16 41.3 47.0 95.0 125 27.5 31.5 63.5 84.0
18 51.8 59.0 120 158 34.5 39.5 80.0 105
20 73.0 85.0 146 194 49.0 57.0 98.0 129
24 122 140 210 282 82.0 94.0 140 188
Approximate weights in kg, density 8 kg/dm3
DIMENSIONAL TOLERANCES OF ASME B16.9 BUTTWELD 90 DEGREE ELBOWS – LR & 3D
DIMENSIONAL TOLERANCES – 90 DEG ELBOWS
For all fittings Elbows 90 degree
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Inside Ø
at End
Wall Thickness
t / t1
Center to End Dim. A-B-C-M
1/2 a 2 1/2 1 0,8 Not 2
3 a 3 1/2 1 1,6 less 2
4 +2 -1 1,6 than 2
5 a 6 +3 -1 1,6 87,50% 2
8 2 1,6 of nominal 2
10 +4 -3 3,2 tickness 2
12 a 18 +4 -3 3,2   3
20 a 24 +6 -5 4,8 3
26 a 30 +7 -5 4,8 3
32 a 48 +7 -5 4,8   5

Angularity Tolerances of ANSI B16.9 90 Deg Elbow
ND Max off angle Max off plane
Q P
1/2 a 4 1 2
5 a 8 2 4
10 a 12 3 5
14 a 16 3 7
18 a 24 4 10
26 a 30 5 10
32 a 42 5 13
44 a 48 5 20
90 Degree Center Formula, 90 Degree Elbow Fabrication Formula

Formula for calculating center to end distance of such 90 degree elbows is as follows:

Elbow length in mm = Tan(Elbow Angle/2) X Elbow Radius in mm

Where: For 90° Long Radius elbows, center to end dimension given in dimension tables of ASME B16.9 is same as 90 degree elbow short radius. This is because Tan(90/2) i.e. Tan 45 is 1.
Generally these custom elbow angles 90 are cut from 90 degree standard elbow.



ASME B 16.9 Elbow Types
  • Seamless Pipe Elbow
  • Elbow 90 Degree
  • Buttweld 90 Deg Elbow
  • Elbow 90 Degree Short Radius
  • Long Radius 90 Deg Elbow
  • ASME B16.28 90 Deg Elbow
  • Buttweld Seamless 90 Deg Elbow
  • JIS B2313 Buttweld 90 Deg Elbow
  • Buttweld 90 Degree Elbow Take Off
  • Welded Pipe Elbow
  • Buttweld Pipe Elbow
  • ASME B16.9 90 Deg Elbow
  • Short Radius 90 Degree Elbow
  • Elbow 90 Degree Long Radius
  • MSS-SP-43 90 Deg Elbow
  • Buttweld Welded 90 Deg Elbow
  • JIS B2312 90 Deg Elbow Pipe Fittings
  • Fabricated 90 Deg Elbow Pipe

90 degree elbow

Category: 90 degree elbow

A 90 degree elbow is a type of pipe fitting that has a 90-degree angle, allowing for a change in direction of the pipe.

Category: 90 degree elbow

A 90 degree elbow is commonly used in plumbing, HVAC (heating, ventilation, and air conditioning), and industrial piping systems to redirect flow in a system, change the direction of a pipe, or connect pipes of different diameters. It can also be used to provide additional support and strength to a pipeline.

Category: 90 degree elbow

The length of a 90 degree elbow can vary depending on the size of the pipe it’s designed for. Generally, the longer the radius of the elbow, the smoother the flow of fluid or gas through the pipe.

Category: 90 degree elbow

The price of a 90 degree elbow varies depending on factors such as the material it’s made of, the size, and the manufacturer. You can find 90 degree elbows ranging from a few dollars to several hundred dollars.

ASME B 16.9 90 Deg Elbow – Applications & Industries

We are well-known prestigious exporter and supplier of high quality 90 degree long radius elbows, 90 degree short radius elbows. We supply elbow 90 degree to customers in various industries including chemical, pharmaceutical, petrochemical, power, engineering and various other industrial applications.Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, Third Party Inspection Report and 100% Radiography Test Repor.
